Carbon film provides low-profile electric underfloor heating beneath approved floating engineered wood and laminate floors. The dry system uses thermal insulation below the element, a protective PET vapour barrier above it and a floor-sensing thermostat to control the surface temperature.
We size and supply systems throughout mainland UK. Installation is available in Edinburgh and selected areas of Scotland - contact us with your postcode to confirm availability.
Carbon film underfloor heating for wood floors insulation layer
First, we install a layer of 6mm thermal insulation boards across the entire sub-floor. The floor insulation is then taped around the edges with heavy-duty cloth tape to ensure a sealed floor.
This insulation layer prevents any heat or cold from passing through, meaning that any heat produced by your heating system can only rise and warm the room.
The whole build-up - insulation, film and all - is 7mm. Your door still closes.

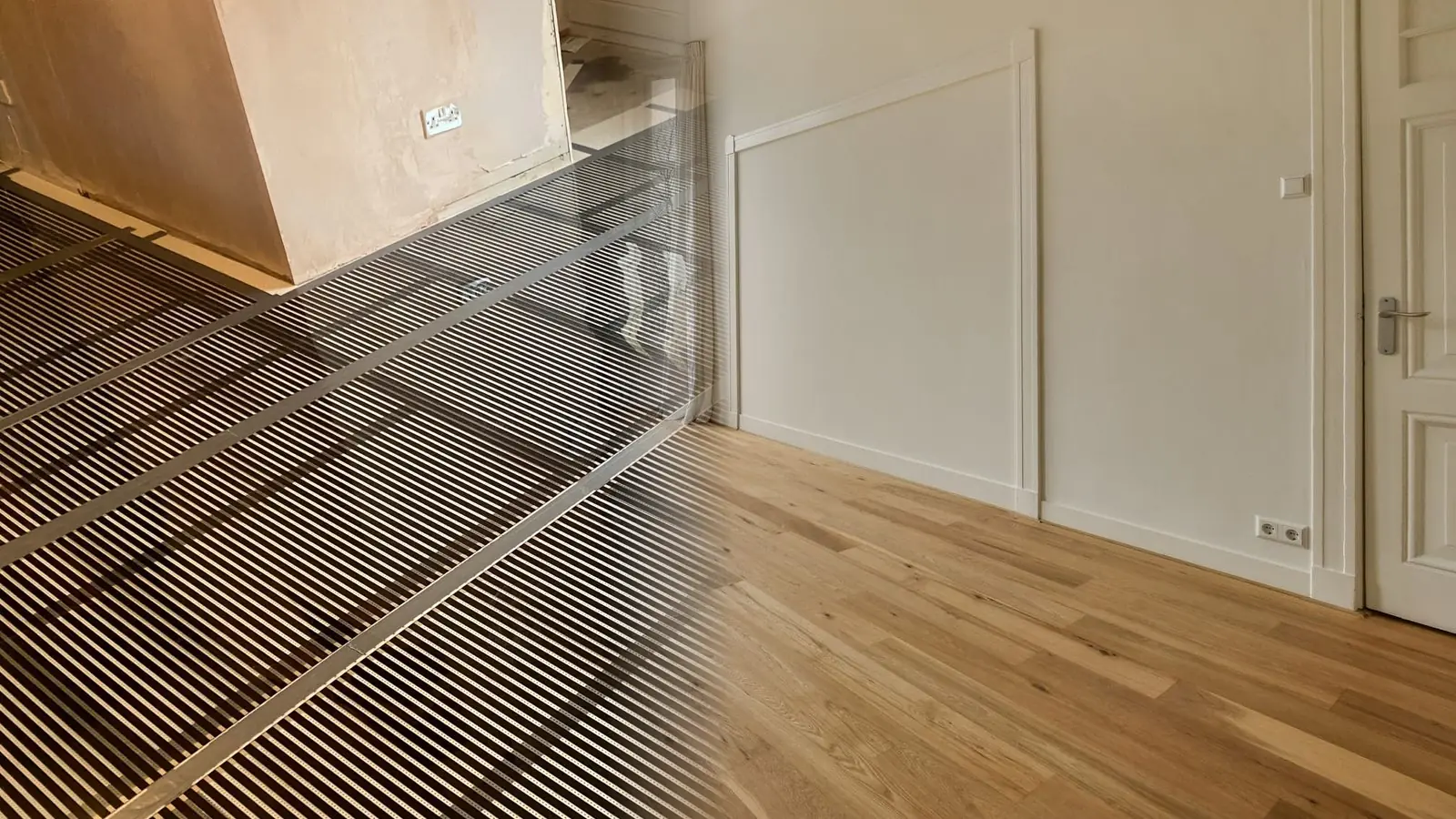

Carbon film under wood and laminate
How the job goes
Carbon film underfloor heating for wood floors installation
Our company offers the Underfloor Heating For Wood Floors in three different widths. The installation covers the entire floor area, leaving only a 100mm gap around the perimeter. Additionally, the workers overlay the heating elements with a protective vapour barrier and seal it around the edges.
The electrician wires and connects the Under Wood Heating System to your power source via a fused spur isolation switch. Notably, this type of electric underfloor heating system has no moving parts, which not only allows for maintenance-free operation but also enhances reliability.
Underfloor heating for wood floors room thermostat installation
We will fully install and wire the underfloor heating system. We will install your 7-day programmable room thermostat. A floor sensor probe is included in this. In addition, this device controls your heating system. It helps regulate the temperature in your room.
Finally, our Select Registered and fully qualified electrician must always complete the final connection of the heating system and the thermostat.

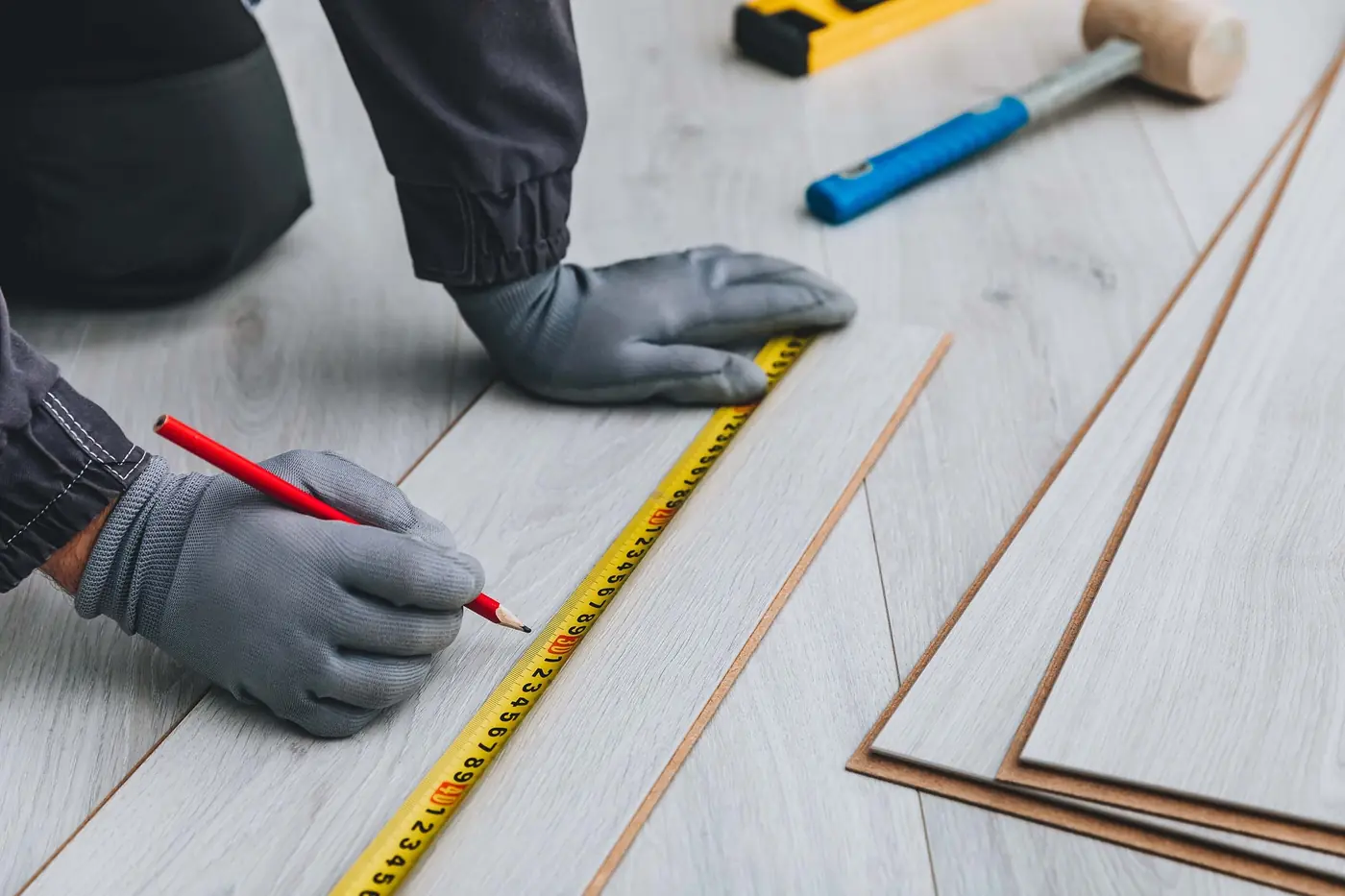

Finish flooring installation

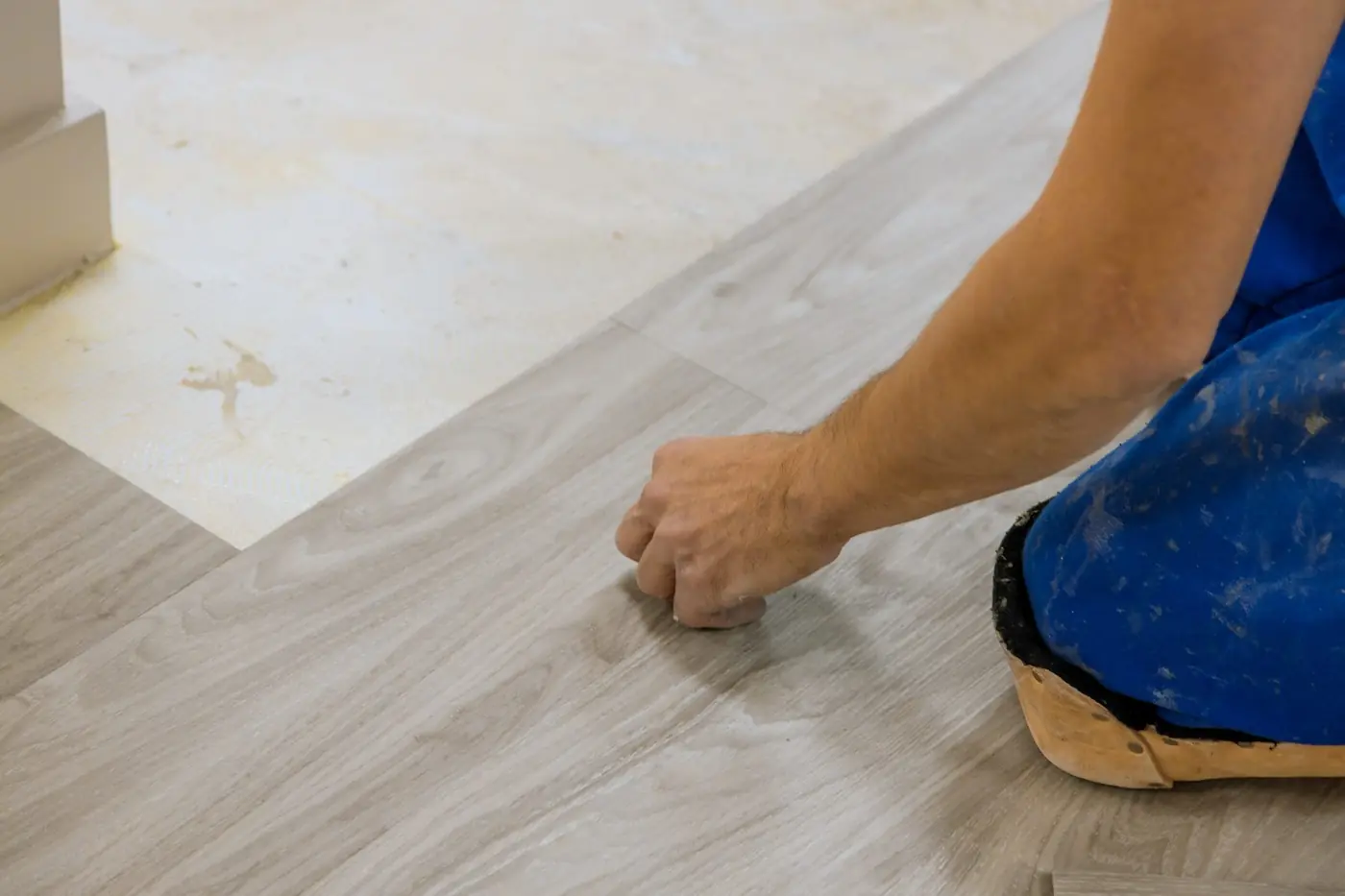

We will begin installing your finish floor on top once we install and test the underfloor heating system. You can use either laminate flooring or engineered wood flooring, and both types are compatible with this electric underfloor heating system.
In addition, we recommend removing skirting boards for best results. Afterwards, you will subsequently refit the skirting boards after laying the floor. We install matching threshold bars at your doorways and around fixtures like fireplaces.
Where we install
We install carbon film underfloor heating across Edinburgh and central Scotland, including East Lothian and West Lothian.
Book a free consultation
Give us the room dimensions and the floor finish, and we will tell you exactly which system to order and what it will cost.
Or call 0800 756 6862
Also on this page
Carbon film is a dry-lay system. There is no adhesive, no screed and no wet trades, so the floor goes back down the same day it comes up.
- Choose a compatible floor
- Sized for the clear floor area
- Electrical connection and guarantee
Element thickness, under the floor finish
Per square metre of heated floor
Guarantee on every film system
Years fitting floors in Scotland
Why Choose Us?
What every order includes
Free next-day delivery
On every underfloor heating system, anywhere in mainland UK.
Ten year guarantee
Every carbon film system carries a 10 year guarantee.
Free technical support
Talk to an installer before you buy, and while you fit it.
Sized to your room
Tell us your dimensions and we will size the system for you.
Our Manufacturing Partners
The floors that go over it come from manufacturers we buy from directly, so what you get is manufacturer-backed rather than whatever a merchant happens to hold.
Flexel
ScotlandOur heating manufacturer. The Ecofilm carbon element, the Depron insulation and the ECOMAX boards are all made here in Scotland rather than imported.
Kährs & Boen
Engineered wood. Both build boards rated for use over underfloor heating, which is the part most engineered wood gets wrong.
Parador & Quickstep
Laminate and luxury vinyl. Every range we stock from them is compatible with the film, so the two are never fighting each other.
Approvals & Standards
EN 60335-2-96
BS 7671 18th Edition
CE Certified
Fitted in Scotland
Approved to EN 60335-2-96 as required by the 18th Edition Wiring Regulations (BS 7671).
Product specificationThe polyester vapour barrier provides supplementary electrical insulation as a requirement of the BS EN 60335-2-96 approval certificate.
Installation guidanceMore Information
Choose a compatible floor
Engineered wood and laminate products have maximum permitted temperatures and thermal-resistance limits. We check the chosen board and underlay together and configure the floor limit accordingly. Solid timber must not be described as universally suitable.
Sized for the clear floor area
The film is planned around the room and kept away from fixed units and other areas where heat could be trapped. The supplied elements must not be shortened, folded or overlapped during installation.
Electrical connection and guarantee
A qualified electrician completes the connection, testing and certification. Ecofilm carries the stated 10-year product guarantee, subject to the manufacturer’s installation terms; controls and insulation have their own warranty periods.
Common questions
What is the thickness of the carbon film underfloor heating system?
The total thickness of the carbon film underfloor heating system, including the insulation layer is only 7mm.
What types of flooring can you use with the carbon film underfloor heating system?
The carbon film underfloor heating system is ideal for installation with both laminate flooring and engineered wood flooring.
This versatile heating solution offers compatibility with various types of flooring materials, thus ensuring efficient and even heat distribution throughout your space.
In addition with its ability to work seamlessly with these popular flooring options, the carbon film underfloor heating system provides a comfortable and energy-efficient way to warm your home.
Is this underfloor heating system easy to maintain?
This type of electric underfloor heating has no moving parts and is completely maintenance-free.
How long does it take to install this type of electric underfloor heating?
This type of electric underfloor heating can be installed within a single day, encompassing all the necessary electrical work.
How do you control the carbon film underfloor heating system?
The carbon film underfloor heating system can be easily managed with a 7-day programmable room thermostat. Additionally, we can install thermostat hubs; consequently, you can control your electric underfloor heating system via your phone. This not only allows for convenient and efficient temperature regulation, but also ensures optimal comfort in your home.
Do you provide an installation service for the carbon film underfloor heating system?
Our team of installers have been fitting carbon film underfloor heating systems across Scotland since 2004. With extensive experience in this field, we ensure high-quality installations and customer satisfaction. Our expertise and dedication make us a reliable choice for underfloor heating solutions.
Can you also install the flooring over the top of this electric underfloor heating system?
We have specialised floor fitting teams in all types of laminate and engineered wood flooring. We can provide and install the perfect flooring solution for your home.
Do you provide an electrician to connect the carbon film underfloor heating system?
We have a fully qualified electrician who is Select Registered and has over 20 years of experience installing these types of heating systems. Our expert ensures that the installation process is carried out with professionalism, guaranteeing optimal safety. With extensive knowledge and proven track record, our electrician is well-equipped to any challenges that may arise during the installation of heating systems.
